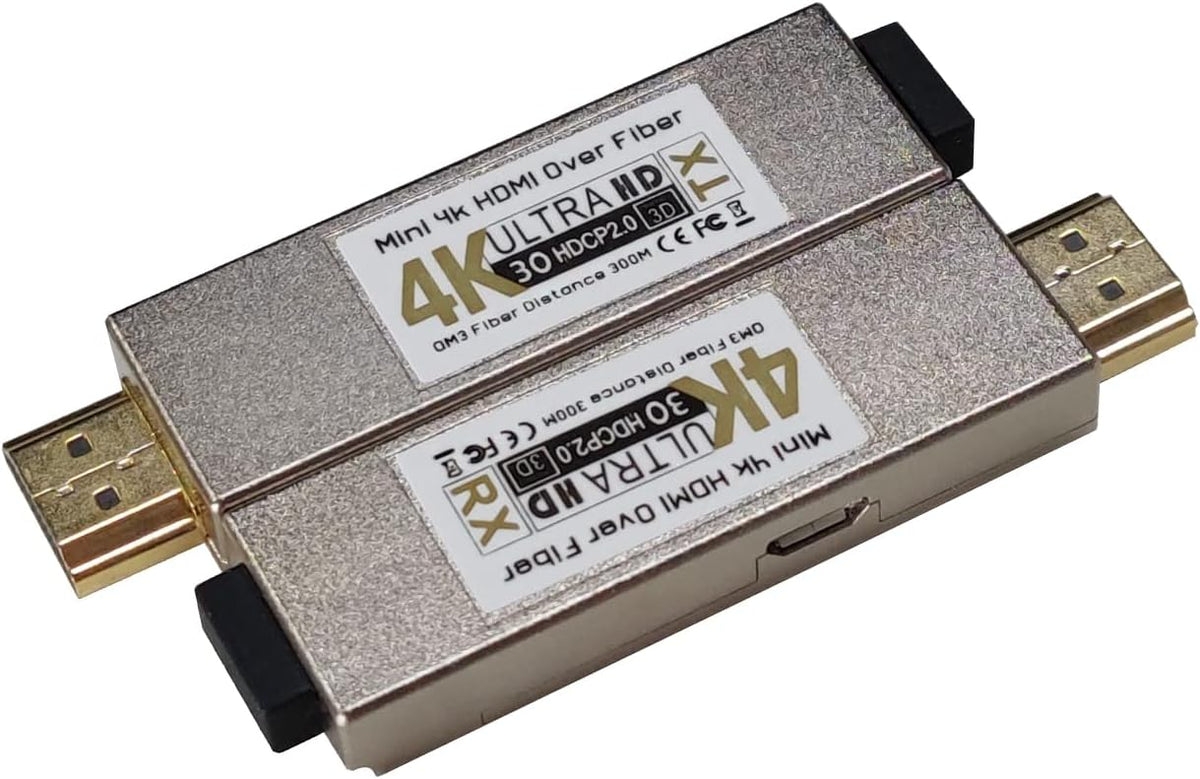

4K HDMI Fiber Extender M558
4K HDMI Fiber Extender M558
HDMI Video up to 4K*2K@30Hz Resolution.
HDMI 1.4a and HCCP1.2 Support.
Up to 300m Transmission Distance at OM3 Multimode Fiber (850nm).
Integrated USB Connector for Power.
Uncompressed transmission, No delay, No losses.
Specifications:
Video Support: 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support: Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications: Color space 444, 420, 400
Dynamic EDID: Plug & Play, no need to learn
Fiber Connector: Duplex LC Receptacle
Transmission Distance: Multi Mode, up to 984ft (300M)
Dimension (WxDxH): 3.15 x 0.79 x 0.35 in (80 x 20 x 9mm)
Weight: 0.1 kg / 0.22 lb
Power Supply: 5VDC By Micro USB Port
Features:
-HDMI 1.4a and HCCP1.2 Support
-Uncompressed transmission, No delay, No losses
-DDC CEC HPD Signal Support
-Up to 300m Transmission Distance at up to 10.3Gbps with OM3
-Multimode Fiber (850nm)
-Supports All Modes up to 4K*2K@30Hz Resolution
-Standard HDMI Connector
-Integrated USB Connector for Power
-Hot-Pluggable, EMI/RFI Resistant
-Miniature form factor for ease of use and installation
-850nm VCSEL and PIN Photodetector
-Video over (2) multimode fibers
-Typical Power Dissipation 1420 mW (Source), 1220 mW (Sink)
-Operating Case Temperature: 0~70°C
Packages:
1 * LNK-106M-T TX (Transmitter, To Video Source)
1 * LNK-106M-R RX (Receiver, To TV/Display)
2 * Micro-USB cable (50 cm)
1 * Mini 4K HDMI Fiber extender User’s Manual
